Commercial Door Operator Models

LiftMaster powered by myQ Logo

JHDC

LiftMaster powered by myQ Logo

JHDC

LiftMaster JHDC
  • Type: Jackshaft
  • Start/stop progressive
  • MyQ technology and WIFI
  • Wall Mount Installation
  • Battery back-up available
  • Power: available in 1/2, 3/4, 1 and 1.5 HP
  • With chain hoist
  • Single-Phase: 120V and 240V,
    Triphase: 208V, 480V, 600V
LiftMaster powered by myQ Logo

TDC

LiftMaster powered by myQ Logo

TDC

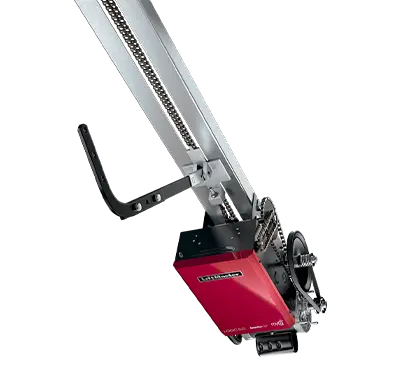

LiftMaster TDC
  • Type: Trolley Drive
  • Start/stop progressive
  • Ceiling Mount Installation
  • Battery back-up available
  • Power: available in 1/2, 3/4, 1 and 1.5 HP
  • MyQ technology and WIFI
  • Single-Phase: 120V and 240V,
    Triphase: 208V, 480V, 600V
LiftMaster powered by myQ Logo

JDC

LiftMaster powered by myQ Logo

JDC

LiftMaster JDC
  • Type: Jackshaft
  • Start/stop progressive
  • MyQ technology and WIFI
  • Wall Mount Installation
  • Battery back-up included
  • Power: available in 1/2 HP
  • Without chain hoist
  • Single-Phase: 120V and 240V
    Triphase: 208V, 480V, 600V
LiftMaster powered by myQ Logo

RJDC

LiftMaster powered by myQ Logo

RJDC

LiftMaster RJDC

  • Type: Jackshaft
  • Brake: Electro-Mechanical braking system
  • Power: DC motor
  • Fast open at 12" / second
  • Single‑Phase: 120V
LiftMaster powered by myQ Logo

H

LiftMaster powered by myQ Logo

H

Model H
  • Type: Jackshaft
  • Industrial duty: more than 12 cycles/hour, max 80/day
  • Power: available in ½, ¾, and 1 HP
  • With chain hoist
  • Single-Phase: 115V and 230V,
    3-Phase: 208V, 230V and 460V, 575V
LiftMaster powered by myQ Logo

GH

LiftMaster powered by myQ Logo

GH

Model GH
  • Type: Jackshaft
  • Heavy industrial duty: high cycles
  • Power: available in ½, ¾, 1, 1½, 2, 3 and 5 HP
  • With chain hoist
  • Single-Phase: 115V and 230V,
    3-Phase: 208V, 230V and 460V, 575V
LiftMaster powered by myQ Logo

GT

LiftMaster powered by myQ Logo

GT

Model GT
  • Type: Trolley
  • Industrial duty: more 20 cycles / hour
  • Power: available in ½, ¾ and 1 HP
  • Emergency manual operation using accessible disconnect
  • Single-Phase: 115V and 230V,
    3-Phase: 208V, 230V and 460V, 575V
LiftMaster powered by myQ Logo

J

LiftMaster powered by myQ Logo

J

Model J

  • Type: Jackshaft
  • Heavy industrial duty: up to 80-90 cycles / day
  • Power: available in ½, ¾, and 1 HP
  • Without chain hoist
  • Single-Phase: 115V and 230V,
    3-Phase: 208V, 230V and 460V, 575V
LiftMaster powered by myQ Logo

INSL24UL

LiftMaster powered by myQ Logo

INSL24UL

LiftMaster INSL24UL

  • Type: Heavy-Duty Industrial Slide Gate Operator
  • Power: DC motor
  • Battery backup included
  • MyQ technology and WIFI
  • Single-Phase: 120V and 240V
    Triphase: 208/230/460VAC and 575VAC
